Based in Xindu Industrial Development Zone, Chengdu Xingraphics Co., Ltd. is dedicated to the development, manufacture, sales and services of CTP plates.

As an international corporate citizen, they are conscious of the direct and indirect environmental impact of their decisions especially in their manufacturing and R&D business units. Xingraphics understand the need to take responsibility directly, that is why to recycle water, chemistry and gasses throughout the manufacturing process and utilizing bio-degradable materials wherever possible to ensure that they protect their employees health and safety as well as safeguard the environment.

Xingraphics acquired ISO14001:2004 Environmental Management System Certification and ISO 9001:2000 Quality Management System Certification.




FIT Invado Thermal Positive CTP Plate

FIT Invado Thermal CTP Plate is especially designed for cost-conscious printers, who need medium to long run lengths with high-performance press quality. It uses advanced thermal plate technology to deliver 1-99% at 250 lpi resolutions, which will satisfy general commercial print quality requirements. Manufactured with strict quality control production procedures, FIT Invado is able to provide printers excellent and reliable pre-press and print results.

PRODUCT PARAMETERS

Type Positive thermal CTP Plate
Suitable for Medium to long run length commercial printing
Substrate High quality grained and anodized aluminum
Maximum width 1480 mm
Spectral sensitivity 830 nm
Exposure energy 120-150 mj/cm2
Resolution 1-99%@250 lpi
Run length 100,000 unbaked, 1million impressions when post-baked
Run length depends on processing and printing quality control and conditions
UV ink compatibility Applicable with UV inks when post-baked
Shelf life 18 months when stored away from excessive cold, heat and humidity
Storage conditions Store plates flat in their packaging, away from excessive cold, heat or high humidity at 5℃ ~ 30℃, with RH between 40 ~ 80%.
Post-baking recommendation 230 ~ 250 ℃, 5 ~ 8 minutes





FIT Envase Positive Thermal CTP Plate

Fit Envase utilizes a dual plate coating technology on a thermal positive plate allowing customers to print with UV inks and in aggressive chemical environments without baking. This is the perfect solution for customers who want to be able to use high-resolution plates and do not want to have to bake the plates when printing with UV inks.

PRODUCT PARAMETERS

Type Positive thermal CTP Plate
Suitable for Commercial Packaging UV Printing
Substrate High quality grained and anodized aluminum
Maximum width 1480 mm
Spectral sensitivity 830 nm
Exposure energy 120-140 mj/cm2
Resolution 1-99%@450 lpi
Run length 100,000 impressions with UV inks; 250,000 impressions with normal inks
Run length depends on processing and printing quality control and conditions
UV ink compatibility Applicable with UV ink
Shelf life 18 months when stored away from excessive cold, heat and humidity
Storage conditions Store plates flat in their packaging, away from excessive cold, heat or high humidity at 5℃ ~ 40℃, with RH between 40 ~ 80%.





Primus Plus Positive Thermal CTP Plate

Primus Plus, the upgraded thermal CTP Plates based on the original FIT technology with balanced press performance, resolution, latitude, and production.

Your first choice for high quality, long run-length printing requirements!

PRODUCT PARAMETERS

Type Thermal positive CTP Plate
Suitable for Commercial, Newspaper and Packaging Printing
Substrate High quality grained and anodized aluminum
Maximum width 1480 mm
Spectral sensitivity 830 nm
Exposure energy 110-130 mj/cm2
Resolution 1-99%@450 lpi
Run length 250,000 unbaked, 1million impressions when post-baked
Run length depends on processing and printing quality control and conditions
UV ink compatibility Applicable with UV inks when post-baked
Shelf life 18 months when stored away from excessive cold, heat and humidity
Storage conditions Store plates flat in their packaging, away from excessive cold, heat or high humidity at 5℃ ~ 40℃, with RH between 40 ~ 80%
Post-baking recommendation 230 ~ 250 ℃, 5 ~ 8 minutes

CTP CHEMISTRY

Xingraphics Arto D Developer
Ready-to-use developer for positive plates

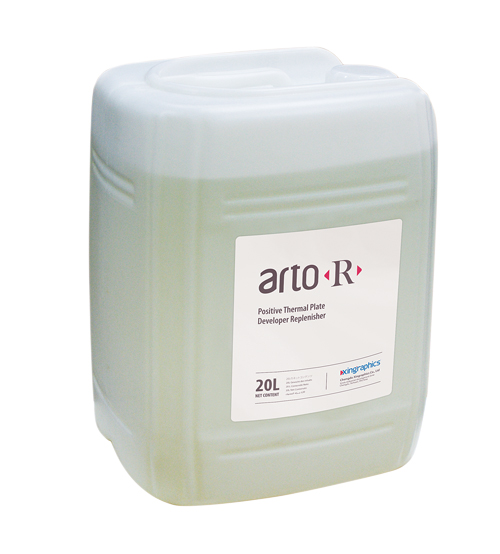

Xingraphics Arto R Replenisher
Ready to use replenisher with Arto-D for positive plate
